The 2D hybrid material incorporates graphene and silica glass for new generation electronics

Some of the most promising materials for future technologies are available in layers only an atom of thickness, such as graphene, a leaf of carbon atoms arranged in a hexagonal network, prized for its exceptional resistance and conductivity. While hundreds of these materials exist, really merge them into something new has remained a challenge. Most efforts simply stack these thin leaves as a card game, but layers generally lack significant interaction between them.

An international team of researchers led by Rice University Materials Scientists has managed to create a real 2D hybrid by chemically integrating two fundamentally different 2D materials – graphene and Silica Glass – in a single stable compound called graphene, according to a study published in Advanced materials.

“The layers are not only based on each other; the electrons move and form new interactions and vibration states, giving birth to properties that none of the elements has in itself,” said Sathvik Iyengar, doctoral student in Rice and the first author of the study.

More importantly, Iyengar explained, the method could apply to a wide range of 2D materials, allowing the development of 2D hybrids of designers for new generation electronics, photonics and quantum devices.

“It opens the door to fully combine new classes of 2D materials – such as metals with insulators or magnets with semiconductors – to create tailor -made materials from zero,” said Iyengar.

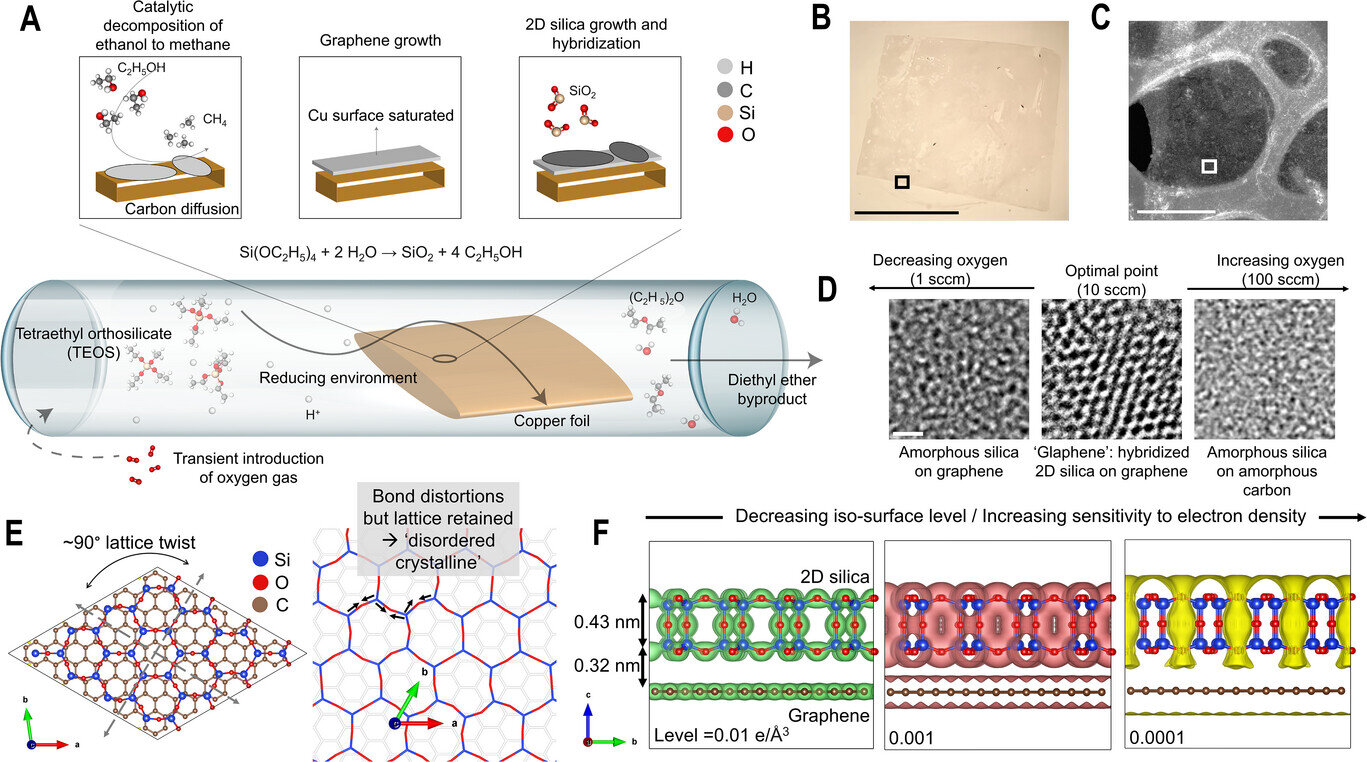

The team has developed a single two -stages method to cultivate glaphinus using a liquid chemical precursor which contains both silicon and carbon. By adjusting the oxygen levels during heating, they first increased graphene, then moved the conditions to promote the formation of a silica layer. This required a personalized high -temperature and low pressure device designed over several months in collaboration with Anchal Srivastava, guest professor at the Hindu University of Banaras in India.

“This configuration was what made the synthesis possible,” said Iyengar. “The resulting material is a real hybrid with new electronic and structural properties.”

Once the equipment is synthesized, the rice team worked to confirm its structure with Manoj Tripathi and Alan Dalton at the University of Sussex. One of the first clues that glanious was something new came from an anomaly. When the team analyzed the material using Raman spectroscopy – a technique that detects how atoms vibrate by measuring subtle changes in the dispersed laser light – they found signals that did not correspond to graphene or silica. These unexpected vibratory characteristics alluded to a deeper interaction between the layers.

In most battery of 2D materials, the layers are simply sitting in place, kept weakly like magnets on a refrigerator door. But in glaphino, the layers lock through much more than what is called weak van der waals links, allowing the electrons to flow between them and to give rise to entirely new behaviors.

To investigate more, Iyengar consulted Marcos Pimenta, an expert in spectroscopy based in Brazil. In the end, the anomaly has proven to be an artifact – an important recall, said Iyengar, that even the reproducible results must be treated with caution.

To better understand how the linked layers behave at the atomic level, the team collaborated with Vincent Meunier at the Pennsylvania State University to verify the experimental results against quantum simulations. These confirmed that the graphene and silica layers interact and bind in a unique way, partially sharing the electrons through the interface. This hybrid bond modifies the structure and behavior of the material, transforming a metal and an insulation into a new type of semiconductor.

“It was not something that only one laboratory could do,” said Iyengar, who recently spent a year in Japan as Japan Society for the Promotion of Science (JSPS), and also an inaugural recipient of the Quad Stock Exchange, a program launched by the governments of the United States, India, Australia and Japan to support the sciences, And diplomacy meets on the world phase. “This research was a cross effort to create and understand a material nature does not make itself.”

Pulickel Ajayan, Benjamin M. and Mary Greenwood Anderson of Rice, professor of engineering and professor of materials and nano-engineering, said that if the discovery of glaphène is significant in itself, which makes the search really exciting is the wider method it introduces: a new platform to chemically combine the fundamentally different 2D materials.

Research reflects a guiding principle that Iyengar says he inherited his advisor.

“Since I started my doctorate, my advisor encouraged me to explore mixing ideas that others hesitate to mix,” he said, citing Ajayan, who is an author corresponding in the study alongside Meunier. “Professor Ajayan has also said that real innovation occurs in the junctions of hesitation, and this project is proof of this.”
